- 6V 12V 18V 24V Self-Made High Speed DIY Wires Harness Conversion Kit for Kid's Ride on Toys Electric Car SUV ATV UTV Motorcycle,Set of Wire Harness Switch RS550 Fast Steel Gears Motor Gearbox for Children Power Wheels Upgrade Trax Replacement Parts Accessories

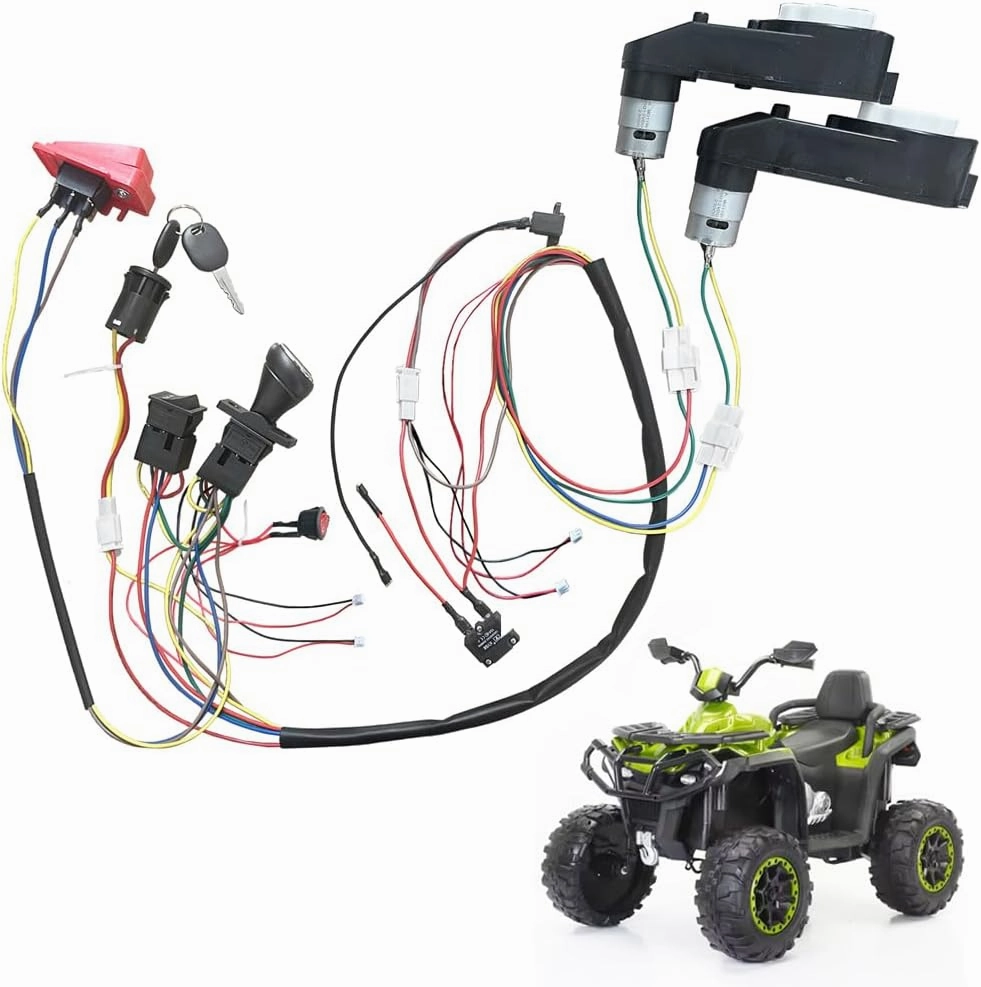

- The Kit Includes: Wire Harness, Pedal Switch Forward/Reverse Stop Gear Switch, High/Low Speed Switch, Key Start Switch, Charger Port, 25A Fuse, 2PCS High-Speed RS550 Motor Gearboxes
- Special Design: We have Added 4 Small Power Interfaces at the Front and Rear Ends of the Harness, Which can be DIY Connected to Some Lights or Music, etc Then we Set Up Power Switches for These Four Small Sockets. Of Course, If you Don't need These Sockets, You can Ignore Them, Even the Small Circular Power Switch can be Ignored and not Installed.
- Advantages: Multiple Package Options, 6V-24V Full Range Voltage Selection, No Controller, No Need to Worry About Controller Damage, Easy Maintenance in the Later Stage, Only Need to Install the Power Supply to Work,High Speed Quality Motor, Steel Gear High-Quality Gearbox
- Size: The total length of the wiring harness is 125CM (49.2 inches), and the motor wire can be extended by itself; Motor size: Gearbox Diameter 185mm/7.2in, Aperture 12mm/0.47in, Motor Diameter 37mm/1.47in
- 40000 RPM. If you Choose 6V Power Supply, Motor Speed will Become 11000 RPM）;If your Battery is 18V-24V, Please Choose the 24V Package（When the Voltage is 18v, The Gearbox Speed is 20000rpm.When the Voltage is 20v, The Gearbox Speed is 28000rpm, When the Voltage is 24v, The Gearbox Speed is 35000rpm.Motor Gearbox Output Speed Ratio 1:100）
- Attention: Please Check the Battery Voltage before Purchasing and Choose Wisely. This Wires Harness does not Have Remote Control Function and Cannot be Added Later. If One Motor is Installed, It Will not Work at Low Speed. It is Necessary to Install Two Motors to use the High and Low Speed Switch
The product includes: one set of wiring harness, all switches, and two motor gearboxes
Model differentiation:
1. If your battery is 6V-12V, please choose the 12V package
2. If your battery is 18V-24V, please choose the 24V package

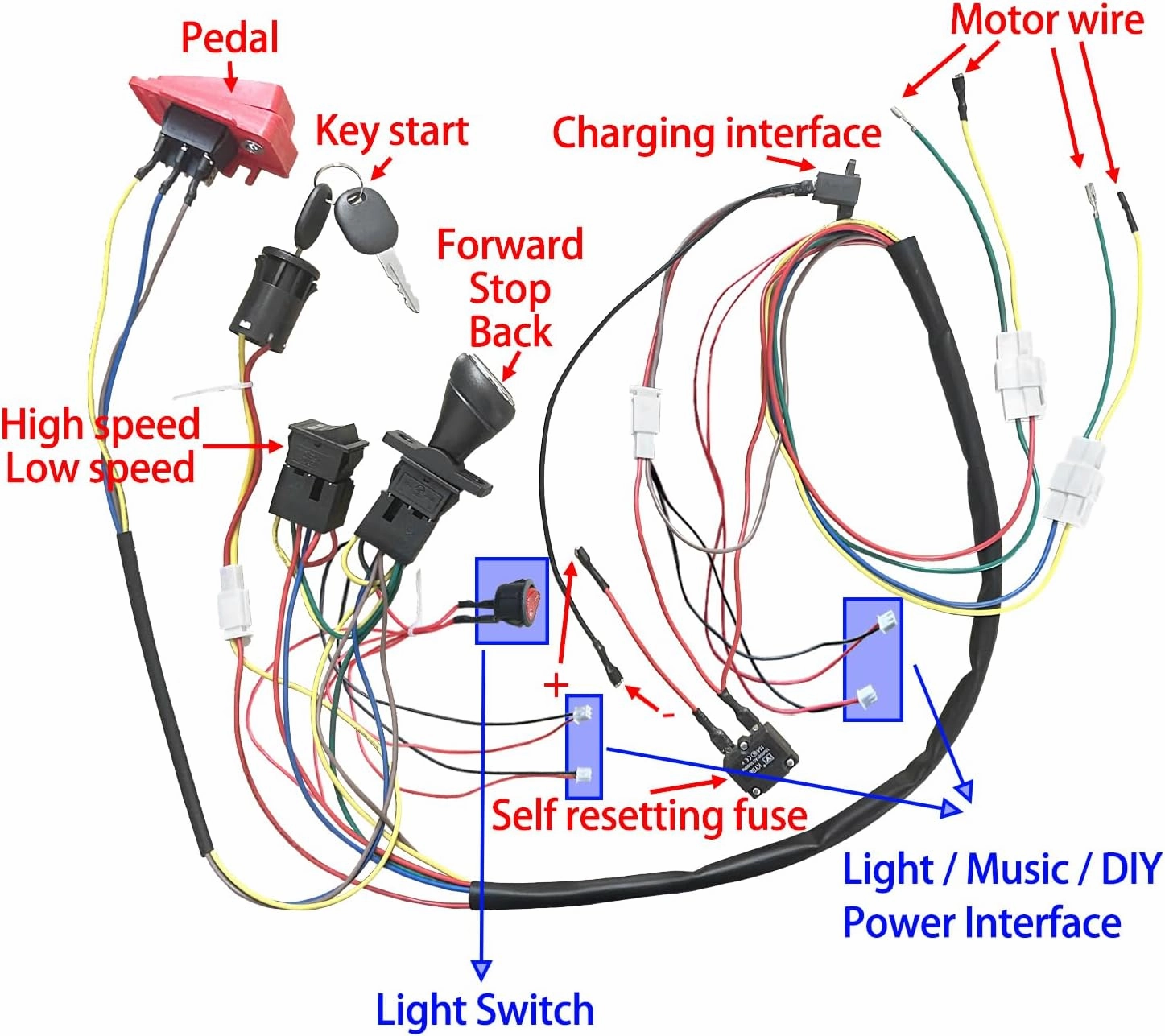

Line switch introduction: complete set of wiring harness, including pedal switch, forward and backward stop switch, high and low speed switch, key start power switch (including 2 keys), charging port (circular charging port), 25A fuse
Motor introduction: The 12V motor gearbox has a speed of 40000 RPM. If you choose a 6V power supply, the motor speed will become 11000 RPM; The 24V motor gearbox has a speed of 35000RPM, When the Voltage is 18v, The Gearbox Speed is 20000rpm.When the Voltage is 20v, The Gearbox Speed is 28000rpm, When the Voltage is 24v, The Gearbox Speed is 35000rpm.Motor Gearbox Output Speed Ratio 1:100
be careful:
1. Please pay attention to the battery voltage before purchasing and choose the appropriate package
2. The wiring harness does not have remote control function, and remote control function cannot be added later
3. Install two motors before using the high and low speed switch. If one motor is installed, it will not work at low speeds
4. Please use a reasonable power source to avoid burning the wiring harness
