- AUTO STOP SMART BATTERY CHARGER- Charges the NiMH/NiCd battery pack of 3-9 cells(3.6V,4.8V,6.0V,7.2V,8.4V,9.6V, 10.8V). The battery is automatically powered off when fully charged, LED turn green
- TRICKLE CHARGE- The maximum charging time is 6 hours. There is trickle current after the power is 100mA. Fast charge for NiCd/NiMH battery pack.

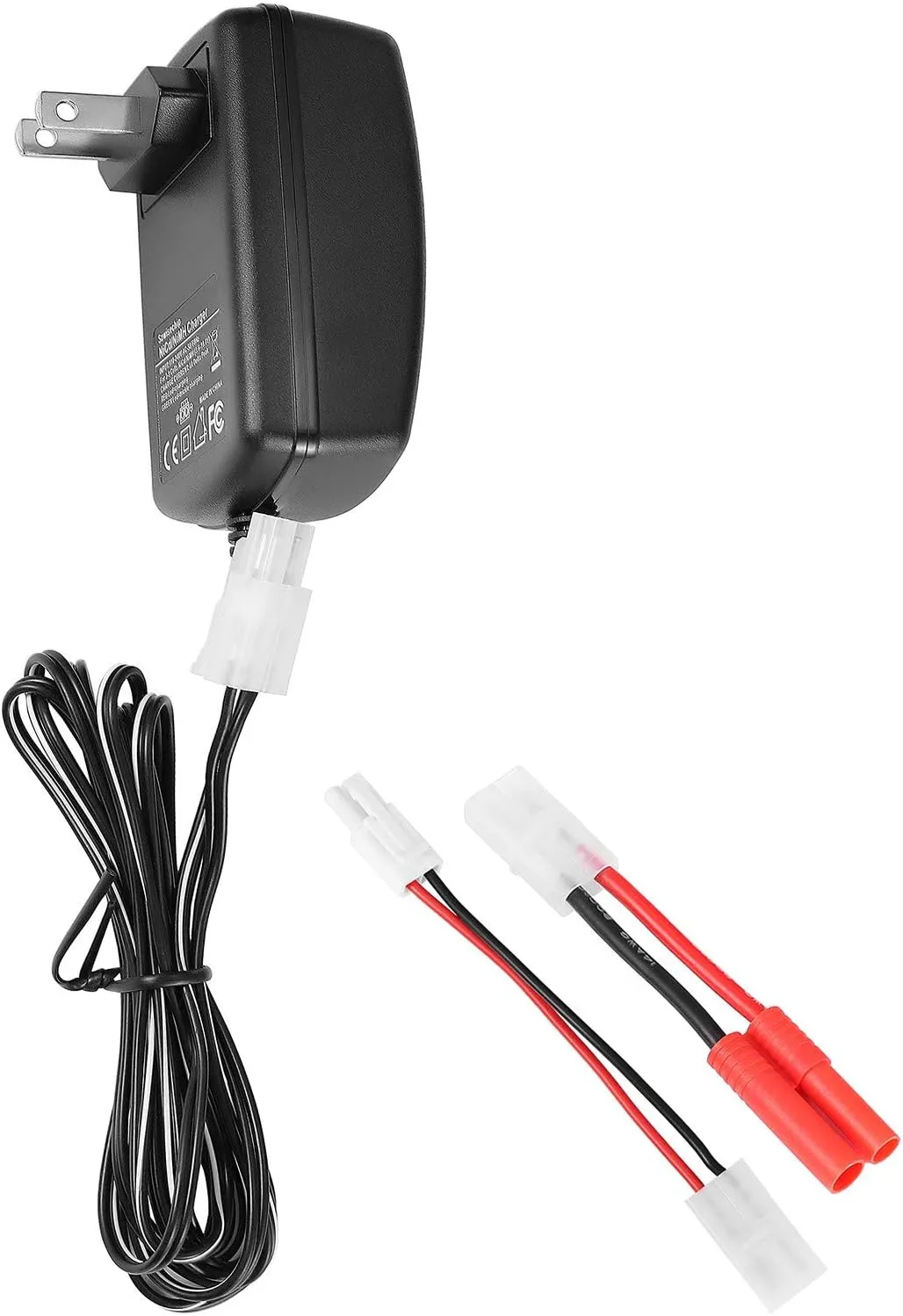

- HOBBY BATTERY CHARGER- With Delta Peak detection function, at the same time can eliminate the memory effect of the battery. Power all your hobbies with one charger. Such as battery packs for Airsoft, RC Cars, and or remote controlled toys. Includes standard size Tamiya connector, standard to mini Tamiya adapter,HXT 4.0mm banana plug
- 3.6V-9.6V 10.8V NiMH/NiCd Battery Packs Hobbies For Airsoft Batteries
- SZWISECHIP WARRANTY - The universal 100-240V AC input enables this charger to be used anywhere. Buy with confidence, this compact battery charger is compliant with the high standard set forth by CE certification and also includes 12-month warranty.
Before place order, Please NOTE: Only Nimh and Nicd battery Chager.
new lead published, please refer ASIN: B07DBQ4CYW
szwisechip is professional charger designer over 10 years, our solution for 1, 2, 4, 7 channel charger wildely used by a lot of UK and German company. We also can make large power charger. 200W, 1000 W for example
We have a serious reminder that this charger is not suitable for lithium，Lipo battery and lead-acid (Pb) battery charging！！！
Feature:
1. Nickel-cadmium, NiMH batteries pack charger for radio-controlled model cars, boats and aircraft.
2. Support 3-9 series battery pack.
3. Working voltage: 110-240V AC @ 50-60Hz Hz
4. Protected against overload and short-circuit.
5. A charge indicator LED is provided for the charge output.
6. 1 A large current charge. After detect a Delta-Peak. Current will down to 100mA to maintain the battery.
The charging progress
1. Locate the mains plug attached the Charger and connect it to a mains socket (110~240 V AC @ 50-60 Hz).The red LED should not flash; this indicates that the charger is ready for use.
2. It is essential to check that the polarity of the battery connector and the charge lead connector is correct (see Figs).
3. Connect the discharged NiMH battery pack to the charge lead attached to the charger.
4. The corresponding red LED will now light up to indicate that charging is in progress at that output.
5. When LED lights up green, the battery connected to the output is fully charged.The pack is now fed a small trickle charge current.Disconnected the charged battery from the charge output.
6. If the battery is still cool and the calculated charging time is not reached, the battery may have a “false” peak. In this can start charging the battery again.”False” peak happen mainly with old or bad NiMH -batteries.
7. Disconnect the Twin charger from the mains socket.
