- ▶【Six Slots Independent Charging】 6 channels works independently , Each channel can be set to different working modes,compatible with 19 types of rechargeable battery .It supports charging for 4*AA batteries or 4 AAA batteries in one lot,It coves varies rechargeable battery size to 26700 battery the Max.(*Support battery AAA,AA,10440,10500,12500,13500,14500,14650,16650,17650,17670, 18650,18700,20650,20700,21700,22650,26650,26700)
- ▶【USB Type-C import】aaa Battery Charger USB: 36W maximum, DC 5~12V,Support QC2.0/3.0 and PD3.0 charging faster.Laptop USB port , 5V 1A can be used as input power supply.
- ▶【IPS LCD & On-time monitoring】The LCD battery charger with 320×240 display screen , On-time charging, discharging , battery type, charging percentage, charged amount, charging time,Battery IR, On-time temperature,voltage and current, and capacity variation curve.
- ▶【Multi Protection】Auto adjustment on charging parameters for best charging performance and multiple protection on batteries.Extend battery life with more reasonable charging and discharging operation.st charging performance and multiple protection on batteries.Extend battery life with more reasonable charging and discharging operation.
- ▶【Mute fan &Gilding spring】C4 EVO's Mute fan,it improve the problem of the noise of C4's fan. Gilding spring,it extend the service life of ISDT C4 EVO.

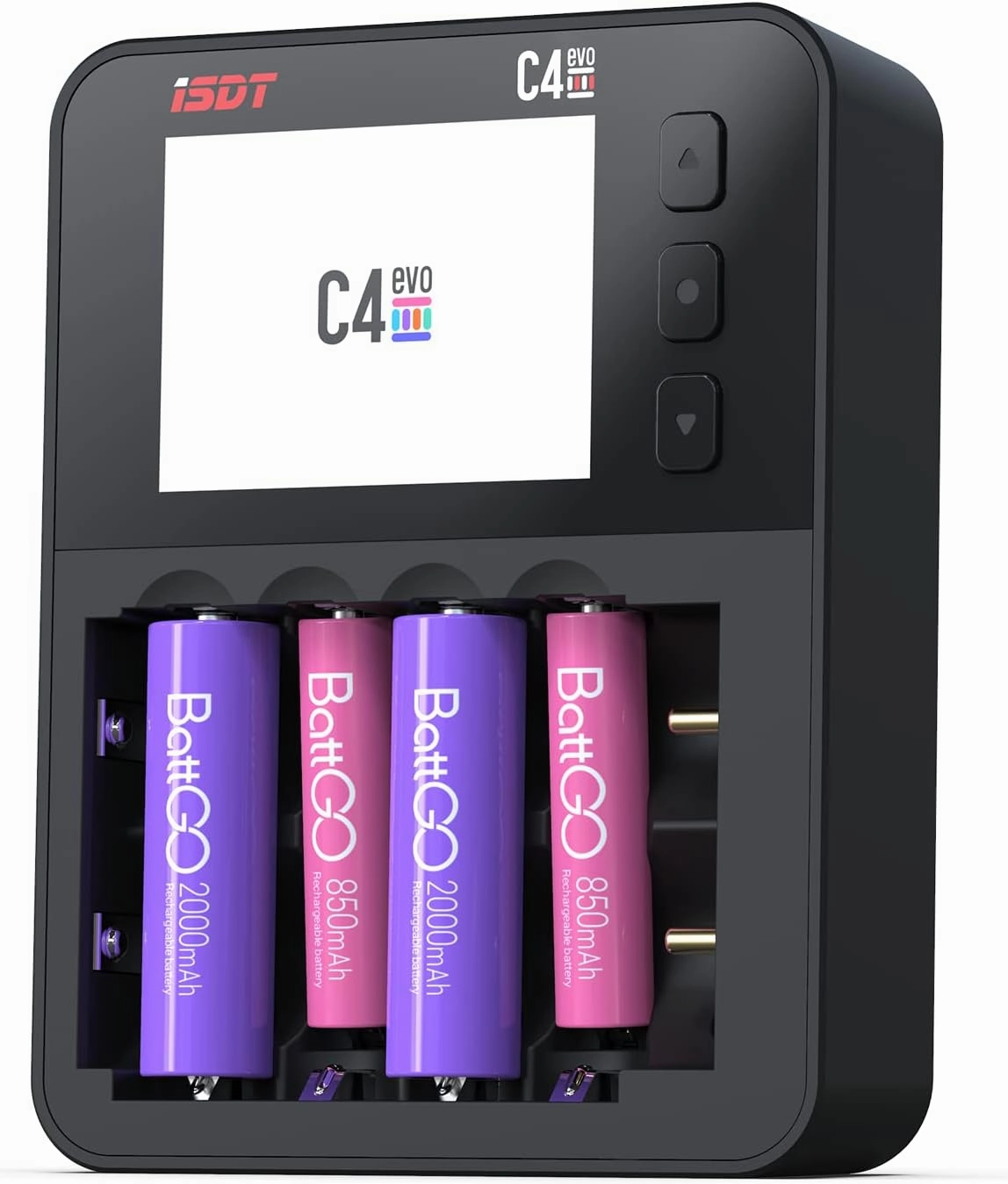

Model:C4 EVO
Battery Count:1~4Cylindrical battery
Battery Size:AAA,AA,10440,10500,12500,13500,14500,14650,16650,17650,17670,18650,18700,20650,20700,21700,22650,26650,26700
Support battery type:Li-Lon, LiFe, LiHv，NiMH, NiZn, Eneloop
Operating Voltage Range:5～12V（Support QC, PD protocol）
Charge Current Range:0.1～3.0A（Horizontal），0.1～1.5A（Vertical）
Discharge Current Range:0.1～1.5A（Horizontal），0.1～1.0A（Vertical）
Operation Modes:Charge, Discharge, Store, Destroy, Cycle, Activate, Analyze
Display:320×240 IPS LCD
Beep Sound:Multi-tone
Temperature Sensors:6 for inner
Working temperature:0~40℃
Voltage Measurement:±10mV
Current Measurement:±10mA
Standby Current Drain:<0.05mA/battery
External Ports:USB power output（Type-C）
Firmware Update:Support
Reverse Polarity Protection:Vertical physical anti-reverse connection,horizontal hardware anti-reverse connection
Overheating Protection:Support
Overcapacity protection:Support
Package Included:
1x ISDT C4 EVO Charger
1x TYPE-C Cable(Adapter/Power supply is NOT included!!)
