- HOURS--- Total time (TOT); resettable partial timer (JOB); maintenance reminder (SVC1&SVC2); initial value setting (INT);TOT & JOB hours read up to 99,999 hours;SVC timer range:0-1000 hours .
- RPM--- Real-time RPM; maximum RPM; RPM alert; selectable RPM refresh rate:0.5/1s;RPM value correction by engine firing patterns and measurement range selection; the RPM measurement value range is consistent with the set alarm range: 0-25000RPM.
- BACKLIT DISPLAY--- Split screen display is convenient to view multiple functions at the same time;Green backlight will help to use it at night or the dim place, you can set the backlight for always-on, OFF and automatical mode as request; Red backlight will remind the maintenance intervals arrival and RPM exceed.
- ECO MODE--- Battery capacity will be kept in good condition with insulation sheet before using or during transport; Replaceable battery compartment and LCD shutdown also can extend the lifetime in vacant time.
- OTHERS--- 24-H clock;Easy installation with Velcro/screw;The wire connecting the product can be extend/shortend( length:appox.68.8 inches);waterproof resistance by whole housing design and back O sealed ring; User data will be retained after display shutdown or battery replaced; Reliable technical support and after-sales service(2 years).

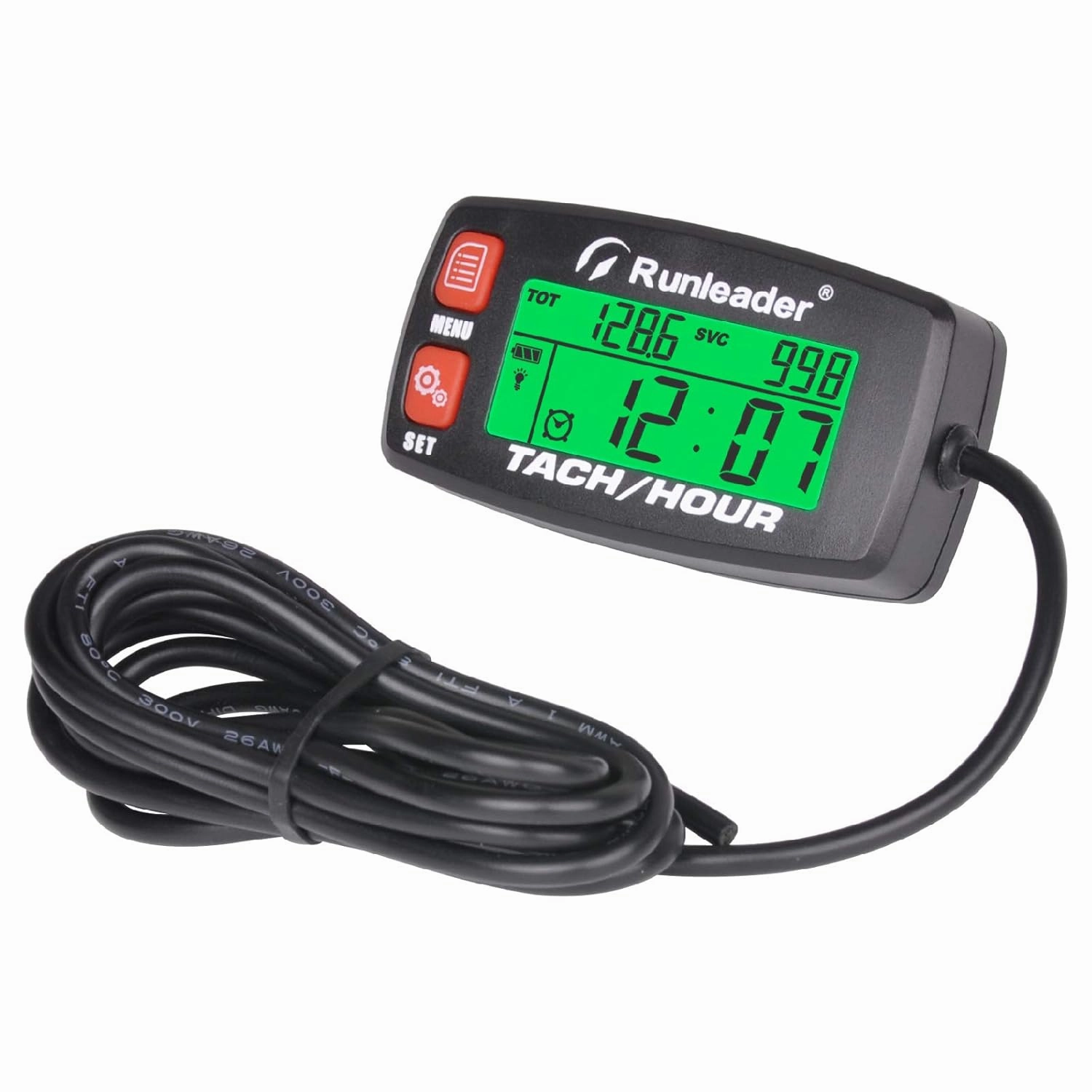

Runleader Tachometer Hour Meter, TOT,JOB,Maintenance Reminder,Initial Value Setting,Current RPM recorded, Alert RPM, Green&Red Backlight Display, User Data Storage,Waterproof Design.
Hours
￭ Timing read up to 99,999 hours,0.1/1 hour accuracy.
￭TOT hours is non-resettable but automatically clear if exceed max value.
￭Count-down tracking for maintenance time, remind the arrived status by flashed icon and red backlight.
￭ TOT initial hours can be programmed for replace an old hour meter.
￭Maintenance time range: 0-1000 hours.
￭Record the times per engine working period.
RPM
￭ RPM measurement range 0-25000RPM,10 RPM resolution.
￭ Display MAX RPM since engine started.
￭ RPM alert channel for speed exceed, remind by red backlight and flashed warning icon.
￭ The engine firing patterns and RPM measurement range to be chosen for RPM accuracy adjustment.
￭ Suitable for gas engine:2 stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder/2 stroke 6 cylinder
4 stroke 1 cylinder/4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder.
Specification
￭ Operating button colors: Red,Blue,Black.
￭ LCD window size:approx.40.8*16.8mm(1.6×0.66 inches) .
￭ Product size:approx 68.5*34.9*17.2mm(2.69x1.37x0.67 inches).
￭ Accessories: 3M adhesive velcro,Set screws*2,M3 hex nut*4,Flat washer*2,Cable tie*2,CR2032 Battery, User manual.
￭ CE ROHS certification.
￭ Waterproof rate: IP65.
- Product Dimensions : 2.7 x 0.68 x 1.37 inches; 2.12 ounces
- Batteries : 1 Lithium Metal batteries required. (included)
- Date First Available : December 4, 2020
- Manufacturer : Ningbo Jiangbei Run Leader Electrics Co.,Ltd
